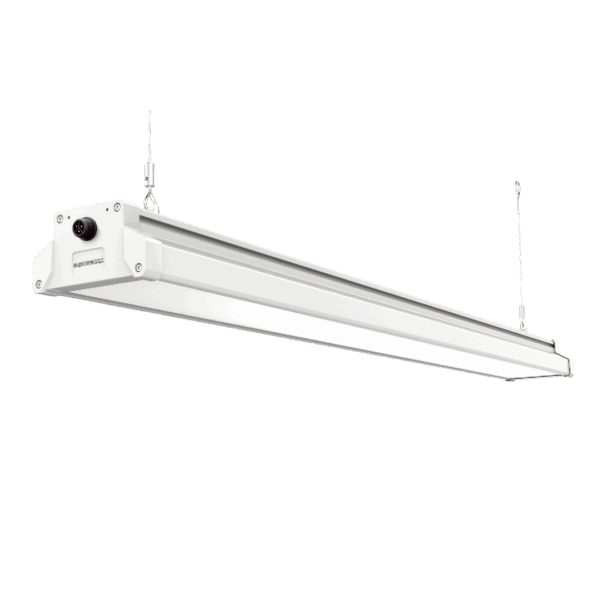

LED Long Field Light 2.0
120 W
,
,
The advantages of the LED linear luminaire 2.0
The LED linear luminaire 2.0 from Elektron Berlin is the ideal lighting solution for industrial halls, workshops, sports halls and other rooms with high lighting requirements. It is bright, energy-efficient and flexible to use. Discover our range of high-quality LED linear luminaires 2.0 now!
<p>D-sign</p>
- D fire protection mark (EN 60598-2-24)
- Approved for operating sites at risk of fire
<p>Insensitivity to soiling</p>
- Smooth surfaces prevent soiling
- Easy cleaning
<p>Optional: ceiling and wall bracket</p>
- Angle adjustment (approx. 60°)
<p>Bayable mounting</p>
- Practical through-wiring
- Stringing together the lights
- Incl. connection set – cable required
<p>5 years warranty</p>
Guaranteed to work.
Product information
- Energy-efficient LED linear luminaire for use in industry and commerce
- Ideal for room heights up to 6 meters
- Wide beam angle ensures uniform illumination
- High-quality die-cast aluminum housing
- Excellent thermal management - luminaire back serves as heat sink
- Large-area and diffuse light output: Low glare effect
- Low glare and high visual comfort even when suspended at low heights
- Smooth surface: Dust-repellent and easy to clean
- Dustproof and jet water protected IP65
- Can be bayed thanks to practical through-wiring - connection set enclosed, cable required
- Can be combined with motion detector - part no. 02817
Technical data
| Power | 120 W |
| Input voltage | 230 V AC |
| Nominal frequency | 50/60 Hz |
| Luminous flux | 15.600 lm |
| Luminous efficiency | 130 lm/W |
| Beam angle | 120° |
| Color temperature | 4.000 K |
| Color rendering index (Ra) | >80 |
| Ambient temperature | -40 °C to +50 °C |
| Clamping range | up to 3G1,5 |
| Protection class | I |
| Protection class | IP65 |
| Dimensions (WxHxD) | 1.550 x 155 x 85 mm |
| Weight | approx. 6 kg |
