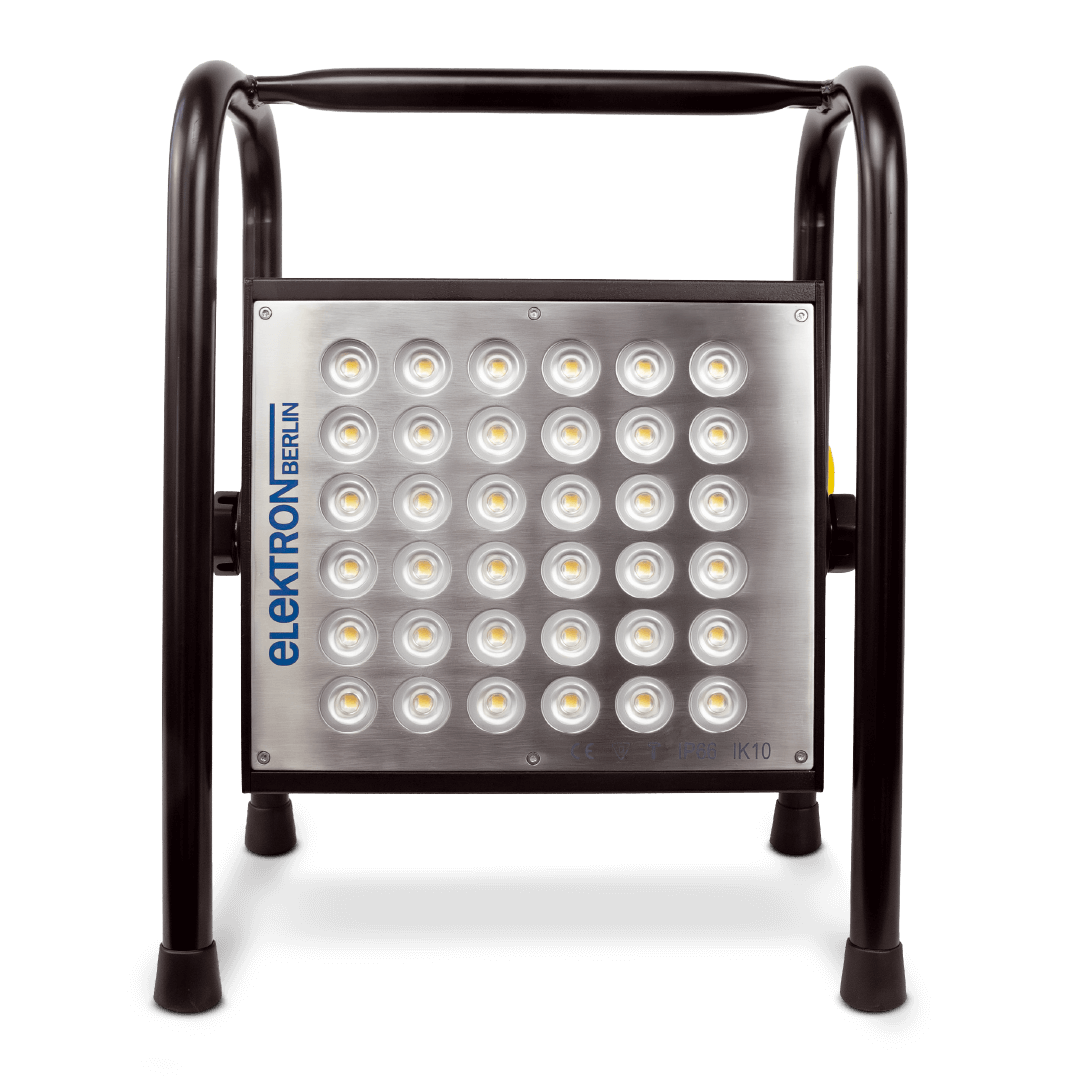

LED compact work light

Compact, highly efficient LED spotlight for mobile use, also available as 42 V model.

5.svg, 10.svg, 34.svg, 55.svg, IK10

ELPUR® connection cable

  • Cable made of special polyurethane
  • Outer sheath with white inner color
  • High load bearing element
  • Available in 5 signal colors

Unique concept

  • Specially designed LED lenses
  • Protected in solid stainless steel plate
  • Maximum protection and impact resistance (IK10)

Sandblast protection grid

  • Optionally available
  • Easy to upgrade
  • Made of solid stainless steel

D sign

  • D fire protection mark (EN 60598-2-24)
  • Approved for fire hazardous locations

Adjustable luminaire angle

  • Lightning fast adjustability without tools

Self adhesive protective film

  • Optionally available
  • Especially for LED compact work light

Product videos & images


By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Product information

  • Compact, highly efficient LED spotlight for mobile use.
  • Perfect for tough and dirty working conditions
  • IP66 protection: Easy cleaning with water hose possible
  • Mounted in a frame: Easy transport and safe stand
  • Extremely resistant - IK10
  • 13,200 lumens at only 100 watts
  • Mounted with 5 m ELPUR® cable 3G1.5
  • Attached earthing contact plug 16 A/250 V
  • Customer imprint on cable possible

Technical data

Power 100 W
Input voltage 230 V AC
Nominal frequency 50/60 Hz
Luminous flux 13.200 lm
Luminous efficiency 132 lm/W
Radiation profile wide beam
Color temperature 5.000 K
Color rendering index (Ra) >80
Ambient temperature -30 °C to + 50°C
Clamping range up to 3G1,5
Protection class I
Protection class IP66
Impact resistance level IK10
Dimensions in frame (WxHxD) 330 x 425 x 240 mm
Weight in rack 9,2 kg
