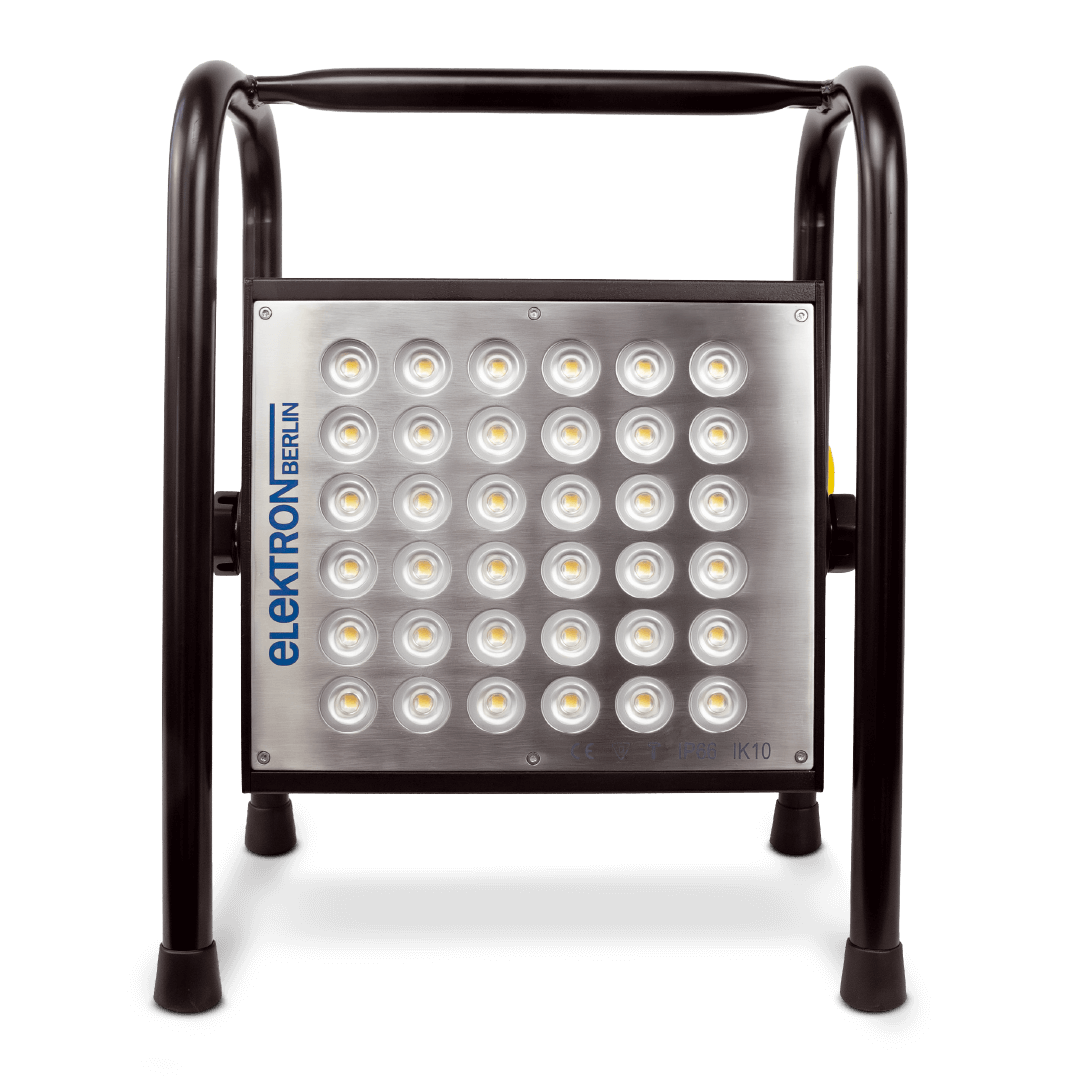

LED compact work light
Compact, highly efficient LED spotlight for mobile use, also available as 42 V model.
,
,
,
,
LED compact work light: brightness and flexibility for your work
The compact LED work light from Elektron Berlin is the ideal companion for your work. It is bright, flexible and durable. With its slim design and low weight, it fits in any pocket and is therefore ideal for mobile use. Discover our range of high-quality LED compact work lights now!
ELPUR® connecting cable
- Cable made of special polyurethane
- Outer sheath with white inner color
- Heavy-duty load-bearing element
- Available in 5 signal colors
Unique concept
- Specially developed LED lenses
- Protected in solid stainless steel plate
- Maximum protection and impact resistance (IK10)
Sandblast protective grille
- Optionally available
- Easy to upgrade
- Made from solid stainless steel
D-sign
- D fire protection mark (EN 60598-2-24)
- Approved for operating sites at risk of fire
Adjustable luminaire angle
- Lightning-fast adjustability without tools
Self-adhesive protective film
- Optionally available
- Especially for LED compact work light
Product videos & pictures
By loading the video, you accept YouTube's privacy policy.
Learn more
PGRpdiBjbGFzcz0iX2JybGJzLWZsdWlkLXdpZHRoLXZpZGVvLXdyYXBwZXIiPjxpZnJhbWUgbG9hZGluZz0ibGF6eSIgdGl0bGU9IkxFRC1Lb21wYWt0LUFyYmVpdHNsZXVjaHRlIDEwMFcgaW0gUHJheGlzLVRlc3QiIHdpZHRoPSIxMDgwIiBoZWlnaHQ9IjYwOCIgc3JjPSJodHRwczovL3d3dy55b3V0dWJlLW5vY29va2llLmNvbS9lbWJlZC9kdjNHYm5Yc0FZWT9mZWF0dXJlPW9lbWJlZCIgIGFsbG93PSJhY2NlbGVyb21ldGVyOyBhdXRvcGxheTsgY2xpcGJvYXJkLXdyaXRlOyBlbmNyeXB0ZWQtbWVkaWE7IGd5cm9zY29wZTsgcGljdHVyZS1pbi1waWN0dXJlOyB3ZWItc2hhcmUiIHJlZmVycmVycG9saWN5PSJzdHJpY3Qtb3JpZ2luLXdoZW4tY3Jvc3Mtb3JpZ2luIiBhbGxvd2Z1bGxzY3JlZW4+PC9pZnJhbWU+PC9kaXY+
Product information
- Compact, highly efficient LED spotlight for mobile use.
- Perfect for tough and dirty working conditions
- IP66 protection: Easy cleaning with water hose possible
- Mounted in a frame: Easy transport and safe stand
- Extremely resistant - IK10
- 13,200 lumens at only 100 watts
- Mounted with 5 m ELPUR® cable 3G1.5
- Attached earthing contact plug 16 A/250 V
- Customer imprint on cable possible
Technical data
| Power | 100 W |
| Input voltage | 230 V AC |
| Nominal frequency | 50/60 Hz |
| Luminous flux | 13.200 lm |
| Luminous efficiency | 132 lm/W |
| Radiation profile | wide beam |
| Color temperature | 5.000 K |
| Color rendering index (Ra) | >80 |
| Ambient temperature | -30 °C to + 50°C |
| Clamping range | up to 3G1,5 |
| Protection class | I |
| Protection class | IP66 |
| Impact resistance level | IK10 |
| Dimensions in frame (WxHxD) | 330 x 425 x 240 mm |
| Weight in rack | 9,2 kg |
