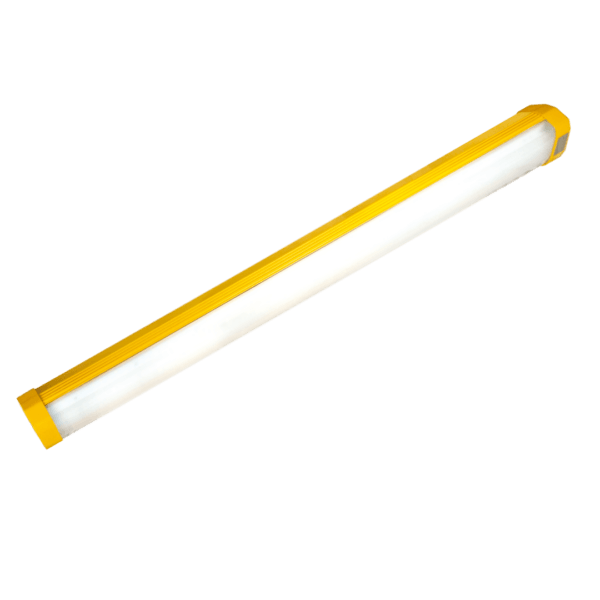

Explosion-proof LED linear luminaire 80 W
1 version as 80 W
,
,
The advantages of the 80 W explosion-proof LED linear luminaire
The explosion-proof 80 W LED linear luminaire from Elektron Berlin is the ideal lighting for hazardous areas where there is a high risk of explosions. It is bright, robust and durable. With its IP66 protection rating, it is dust and waterproof and therefore also suitable for use in damp and dusty environments. Discover our range of high-quality explosion-proof LED linear luminaires now!
ATEX + IECEX STANDARD:
- ATEX zones 1 + 2, 21 + 22
- EN 60079-0, EN 60079-1, EN 60079-31
- Certificate no. IEP 15
- ATEX 0326 EXII 2G Ex d IIB T5 Gb
- EXII 2D Ex tb IIIC T95° C Max Db IP66
LED chips
- High-performance LEDs
- Satin-finished polycarbonate lens
- Optimal illumination and low glare
Frame
- Robust die-cast aluminum frame
- Corrosion-resistant powder coating
- Best protection for the luminaire
Areas of application
- Filling station
- Storage facility
- Production facilities
- Sea loading terminal
- Chemical and petrochemical plants
Mounting material included
- 2 wall/ceiling brackets
- Fastening chains
Long service life
- 3-year guarantee on function
Product information
- Explosion-proof
- ATEX certification for zones 1 + 2, 21 + 22
- Use in locations with flammable gases or dusts
- Resistant to moisture, dirt, dust, corrosion and vibration
- Suitable for harsh climatic conditions, such as wind, water, snow and high ambient temperatures
- Also for upgrading/retrofitting existing conventional lighting systems
- High energy savings, low maintenance costs and short payback time
- Impact resistance IK08
- Dust-tight, protected against strong jets of water IP66
- Increased salt water resistance
- Light output: 108 lumens per watt
- 2 m H07RN-F 3G2.5 cable included
Technical data
| Performance | 80 W |
| Input voltage | 230 V AC |
| Nominal frequency | 50/60 Hz |
| Luminous flux | 8.640 lm |
| Luminous efficacy | 108 lm/W |

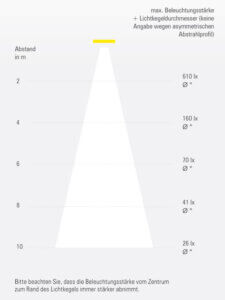

| Beam angle | 150° |
| Color temperature | 5.000 K |
| Color rendering index (Ra) | >70 |
| Operating temperature | –40 °C bis +55 °C |
| Temperature class | T6 (Gas) / T 80°C (Staub) |
| Housing material | Die-cast aluminum |
| Lamp glass | Polycarbonate |
| Protection class | IP66 |
| Impact resistance level | IK08 |
| Required line property | Ø 7 to 14 mm, 3G1.5 |
| Dimmable | No |
| Dimensions (WxHxD) | 1.280 x 90 x 126 mm |
| Weight | 7,4 kg |
